Integrated quick installation wellhead device

•工作压力：2000PSI～20000PSI

•工作温度：-60℃ ～ 121℃（KU）

•材料级别：AA、BB、CC、DD、EE、FF、HH

•规范级别：PSL1~ PSL3

•性能级别：PR1 PR2

全国热线

13616266016

product display

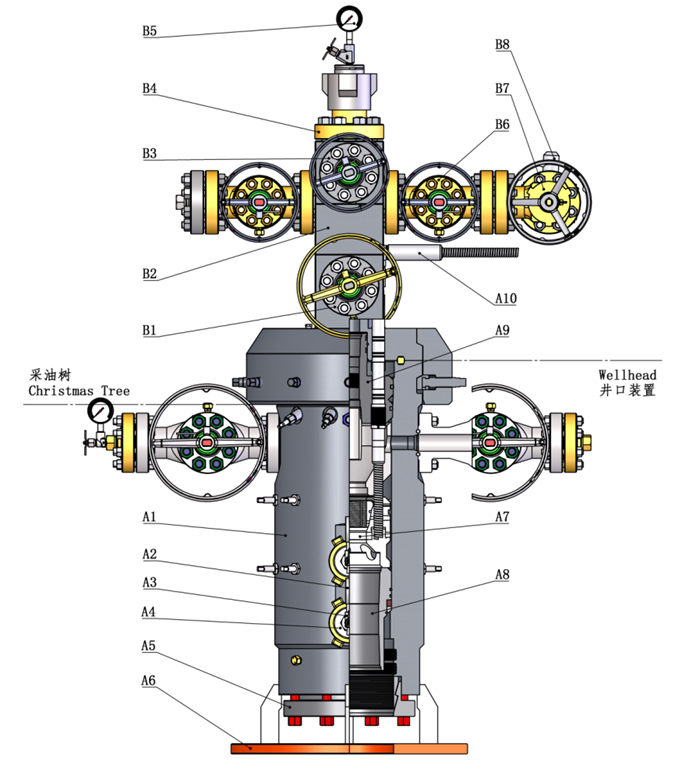

整体快装井口装置和采油树设备

product structure

Wellhead equipment

The casing head adopts an integral structure, which reduces the overall height of the machine, has a compact mechanism, and is easy to operate.
It is recommended to use AB-WD casing hanger for casing head and surface casing, which has the advantages of easy installation and reliable operation. Compared with welding type and slip type structure, it not only greatly shortens the installation time, but also is not limited by harsh external environments. The technical casing hanger adopts a threaded structure with high load-bearing capacity, easy installation, and reliable sealing. The oil casing hanger adopts a slip type structure.
The oil pipe is equipped with cable crossing holes, as well as underground control pipelines and chemical reagent holes. The oil (gas) tree is connected with clamps for easy installation and saves installation time.
Christmas tree

The oil (gas) tree also adopts a complete machine structure, and the integral oil (gas) tree has a forged main valve, wing valve, and suction valve structure. Its advantage lies in occupying low space, improving fire resistance, and reducing potential leakage channels. Like traditional oil (gas) trees, integral oil (gas) trees can meet single row and double row gate valve configurations according to production and valve quantity.

: Conventional wellhead equipment and oil (gas) tree equipment

•工作压力：2000PSI～20000PSI•工作温度：-60℃～121℃（KU）•材料级别：AA、BB、CC、DD、EE、FF、HH•规范级别：PSL1~PSL3•性能级别：PR1PR2

: ESP composite wellhead device

•工作压力：2000PSI～20000PSI•工作温度：-60℃～121℃（KU）•材料级别：AA、BB、CC、DD、EE、FF、HH•规范级别：PSL1~PSL3•性能级别：PR1PR2

: High Integrity Pressure Protection SystemReference

HighIntegrityPressureProtectionSystemReference

: Dual tubing wellhead equipment and oil (gas) tree equipment

•工作压力：2000PSI～15000PSI•工作温度：-60℃～121℃（K.Y）•材料级别：AA、BB、CC、DD、EE、FF、HH•规范级别：PSL1~PSL3•性能级别：PR1PR2
