casing head AB-22/AB-29

•Multi functional straight channel design with a 45 ℃ main bearing shoulder;Can be matched with various types of slip or core shaft casing hangers;AB-22-BP/AB-29-BP casing heads are equipped with additional bolt locking devices;AB-22-L/AB-29-Lcasing heads are equipped with hanging device positioning locking devices;Three different side outlet connections: pipe thread, flange (bolt), and extended flange;Multiple bottom connections, such as socket welding, socket welding+O-ring thread,and slip locking.

在线咨询

全国热线

13616266016

product display

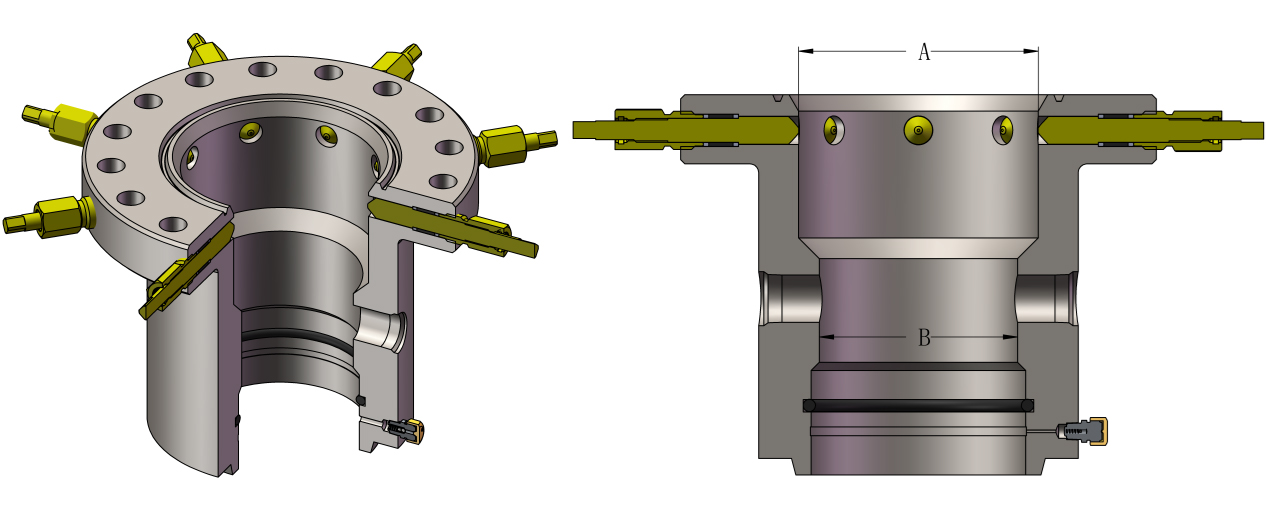

套管头AB-22

AB-22/ AB-29：

The AB-22/AB-29 casing head is designed with a 45 º main bearing shoulder to support the weight of the casing string transmitted by the casing hanger. This design can avoid damage to the sealing surface by drilling tools and prevent wedging of the wear-resistant sleeve and pressure test plug. The side outlet is threaded, but bolted connections can be provided as needed. The bottom can be welded or threaded to connect the sleeve.
The AB-29 casing head has the same reliable design as the AB-22, but the bearing shoulder depth of the AB-29 casing head is greater than that of the AB-22; After assembly with AB-29 casing hanger, it is suitable for drilling deep wells.

AB-22

product parameter

套管尺寸	法兰	工作压力	尺寸
套管尺寸	法兰	工作压力	A, inch	B，inch
7 5/8〞	9〞	2,000	8 3/4〞	7〞
7 5/8〞	9〞	3,000	8 3/4〞	7〞
8 5/8〞	9〞	2,000	8 3/4〞	8〞
		3,000	8 3/4〞	8〞
		5,000	8 3/4〞	8〞
8 5/8〞	11〞	2,000	10 7/8〞	8〞
8 5/8〞	11〞	3,000	10 7/8〞	8〞
9 5/8〞	11〞	2,000	10 7/8〞	9〞
		3,000	10 7/8〞	9〞
		5,000	10 7/8〞	9〞
10 3/4〞	11〞	2,000	10 7/8〞	10〞
		3,000	10 7/8〞	10〞
		5,000	10 7/8〞	10〞
11 3/4〞	13 5/8〞	2,000	13 1/2〞	11〞
		3,000	13 1/2〞	11〞
		5,000	13 1/2〞	11〞
	16 3/4〞	3,000	16 5/8〞	11〞
	16 3/4〞	5,000	16 5/8〞	11〞
13 3/8〞	13 5/8〞	2,000	13 1/2〞	12 1/2〞
		3,000	13 1/2〞	12 1/2〞
		5,000	13 1/2〞	12 1/2〞
	16 3/4〞	3,000	16 5/8〞	12 1/2〞
	16 3/4〞	5,000	16 5/8〞	12 1/2〞
16〞	16 3/4〞	2,000	16 5/8〞	15 1/4〞
		3,000	16 5/8〞	15 1/4〞
		5,000	16 5/8〞	15 1/4〞
20	21 1/4	2,000	20 1/8〞	19 3/16〞
20	20 3/4	3,000	20 1/8〞	19 3/16〞

AB-29

product parameter

套管尺寸	法兰	工作压力	尺寸
套管尺寸	法兰	工作压力	A, inch	B，inch
7 5/8〞	9〞	2,000	8 3/4〞	7〞
7 5/8〞	9〞	3,000	8 3/4〞	7〞
8 5/8〞	9〞	2,000	8 3/4〞	8〞
		3,000	8 3/4〞	8〞
		5,000	8 3/4〞	8〞
8 5/8〞	11〞	2,000	10 7/8〞	8〞
		3,000	10 7/8〞	8〞
		5,000	10 7/8〞	8〞
9 5/8〞	11〞	2,000	10 7/8〞	9〞
		3,000	10 7/8〞	9〞
		5,000	10 7/8〞	9〞
10 3/4〞	11〞	2,000	10 7/8〞	10〞
		3,000	10 7/8〞	10〞
		5,000	10 7/8〞	10〞
11 3/4〞	13 5/8〞	2,000	13 1/2〞	11〞
		3,000	13 1/2〞	11〞
		5,000	13 1/2〞	11〞
	16 3/4〞	3,000	16 5/8〞	11〞
	16 3/4〞	5,000	16 5/8〞	11〞
13 3/8〞	13 5/8〞	2,000	13 1/2〞	12 1/2〞
		3,000	13 1/2〞	12 1/2〞
		5,000	13 1/2〞	12 1/2〞
	16 3/4〞	3,000	16 5/8〞	12 1/2〞
	16 3/4〞	5,000	16 5/8〞	12 1/2〞
16〞	16 3/4〞	2,000	16 5/8〞	15 1/4〞
		3,000	16 5/8〞	15 1/4〞
		5,000	16 5/8〞	15 1/4〞
20	21 1/4	2,000	20 1/8〞	19 3/16〞
20	20 3/4	3,000	20 1/8〞	19 3/16〞
