  • Expansion valve

Expansion valve

•手动设计

•结构简单可靠

•金属型阀体

•阀盖密封

在线咨询
全国热线

13616266016

product display

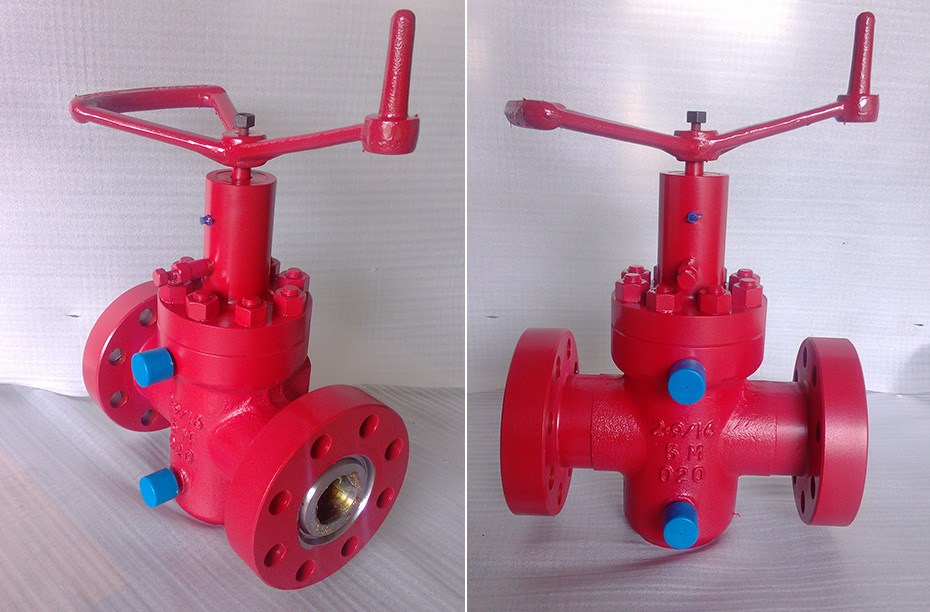

膨胀式阀门KVA65-35-00

产品介绍：
  • 膨胀阀门适用于油田井口、采油树和管汇系统、双向具有优异的密封性能。
设计规范：
  • •标准的膨胀阀门符合最新版的API 6A的要求，依据最新版的NACE MR-0175规范选择适用H2S介质材料。
  • •铸钢阀体锻钢阀盖
  • •低操作扭矩
  • •金属型阀体、阀盖密封
  • •保证阀板润滑和保护阀板表面的导向设计
  • •手动设计、结构简单可靠
product parameter

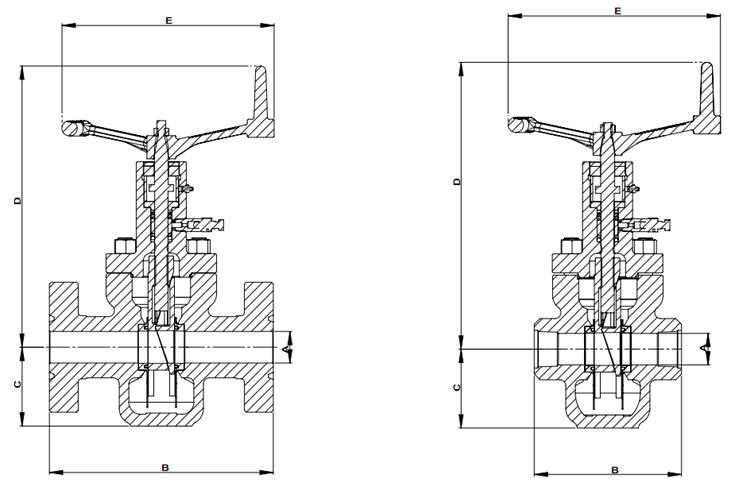

膨胀式阀门KVA65-35-00

口径 额定工作压力(psi) A(mm) 法兰端 螺纹端 C(mm) D(mm) E(mm)
(in) B(mm)
2  1/16 2000 52.32 295.15 234.95 129.54 497.84 254
3000 371.35 244.35 134.62 330.2
5000 371.35 244.35 134.62 330.2
2  9/16 2000 65.02 333.25 260.35 147.32 523.24 330.2
3000 422.15 154.94
5000 422.15 154.94
3 1/8 2000 79.25 358.65 289.05 180.34 579.12 330.2
3000 434.85 154.94 406.4
5000 472.95 193.04 406.4
4  1/16 2000 103.12 434.85 330.2 231.14 657.86 406.4
3000 511.05 238.76
5000 511.05 238.76

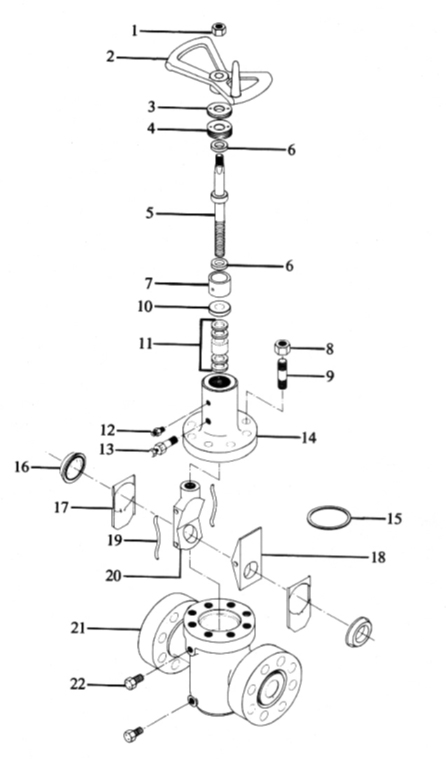

膨胀式阀门KVA65-35-00

1 2 3 4 5 6 7 8 9 10 11
手轮螺母 手轮 压紧螺母 压紧螺母 阀杆 轴承 轴承滑套 螺母 螺栓 填料压盖 填料
12 13 14 15 16 17 18 19 20 21 22
油嘴 管堵 阀盖 中法兰垫环 阀座总成 导板 副阀板 阀板弹簧 阀板 阀体 注入阀
